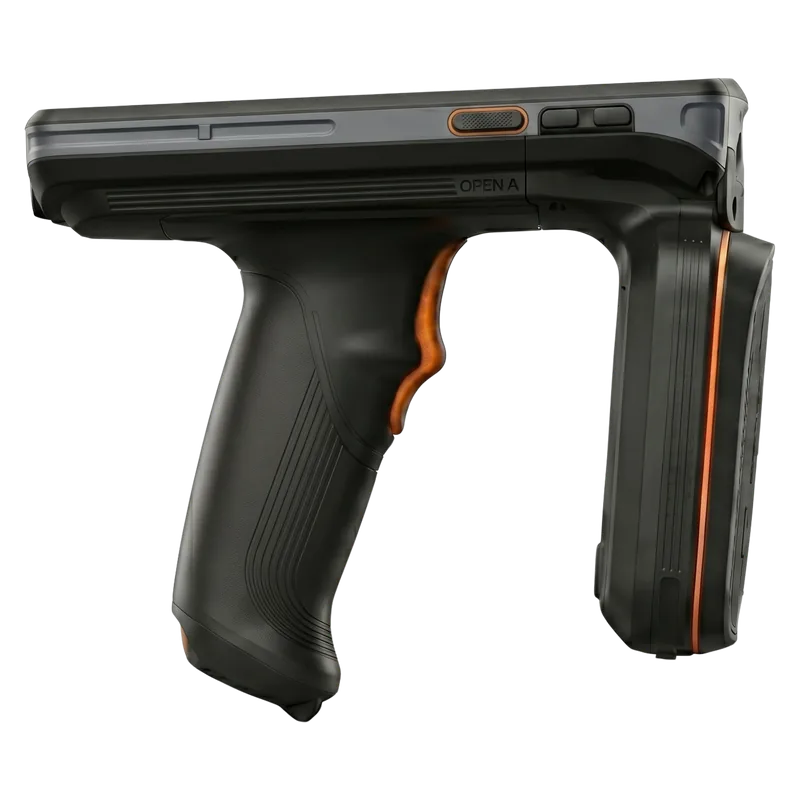

UHF Handheld RFID Reader
RLRH-50 UHF Handheld RFID Reader
Accelerate warehouse inventory, asset checks, and mobile data capture with long-range UHF RFID reading, rapid multi-tag processing, and rugged field connectivity.
* Maximum read distance and tag rate depend on tag type, tagged material, RF settings, antenna orientation, interference, and operating environment.
Why Use RLRH-50?
Built to make inventory faster, easier, and more visible
RLRH-50 combines UHF RFID, professional barcode capture, Android mobile computing, and rugged connectivity for warehouse, retail, asset-management, and field workflows.
Faster inventory rounds
Read up to 1,000 tags per second—without scanning items one by one.
Long-range UHF reading
Capture compatible RFID tags from up to 20 m away under stated test conditions.
RFID + barcode in one
Read UHF RFID and 1D/2D barcodes with one handheld device.
Built for full-shift work
IP67 protection, 1.2 m drop resistance, and a removable 9000 mAh battery.

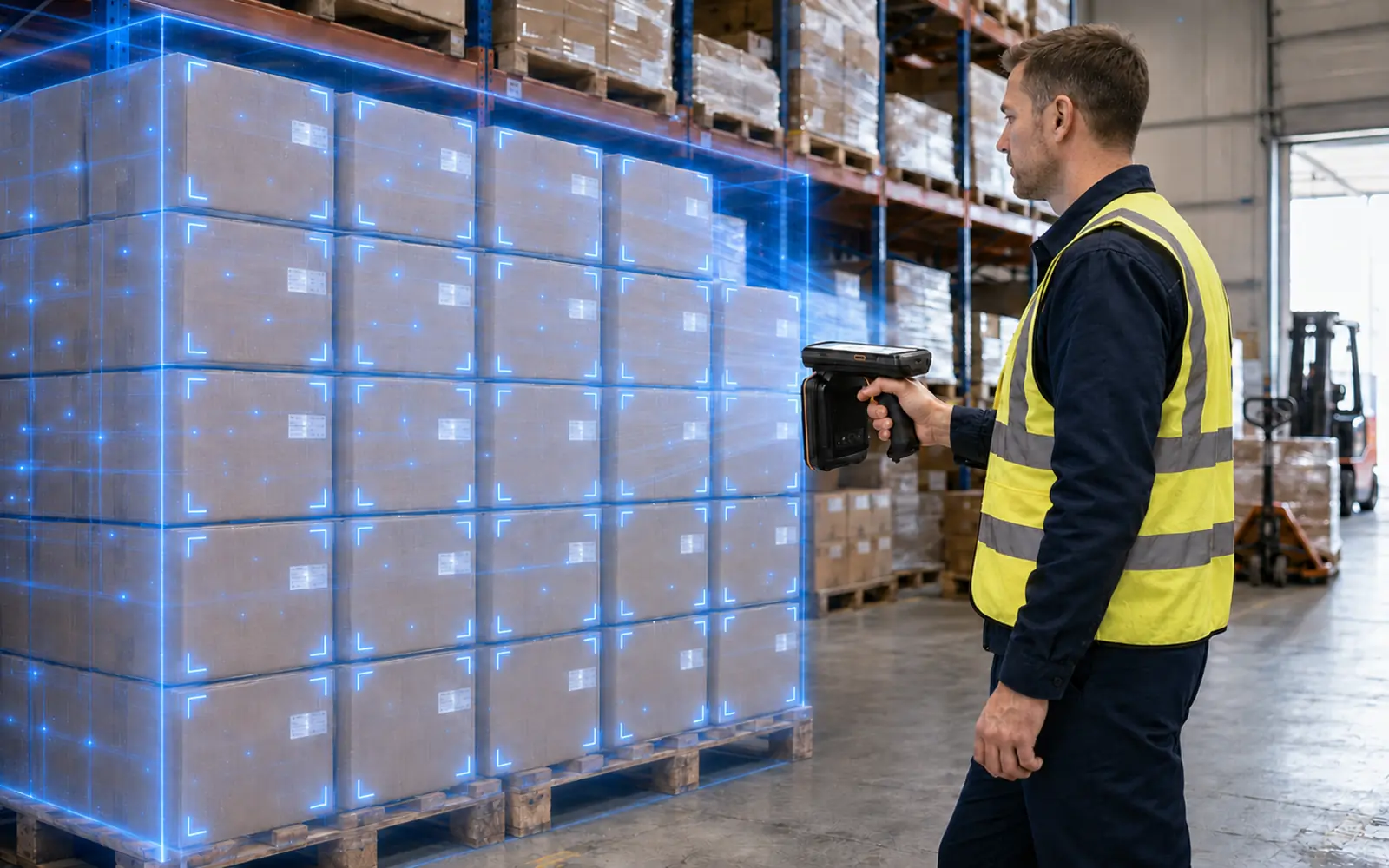

Rapid RFID Inventory

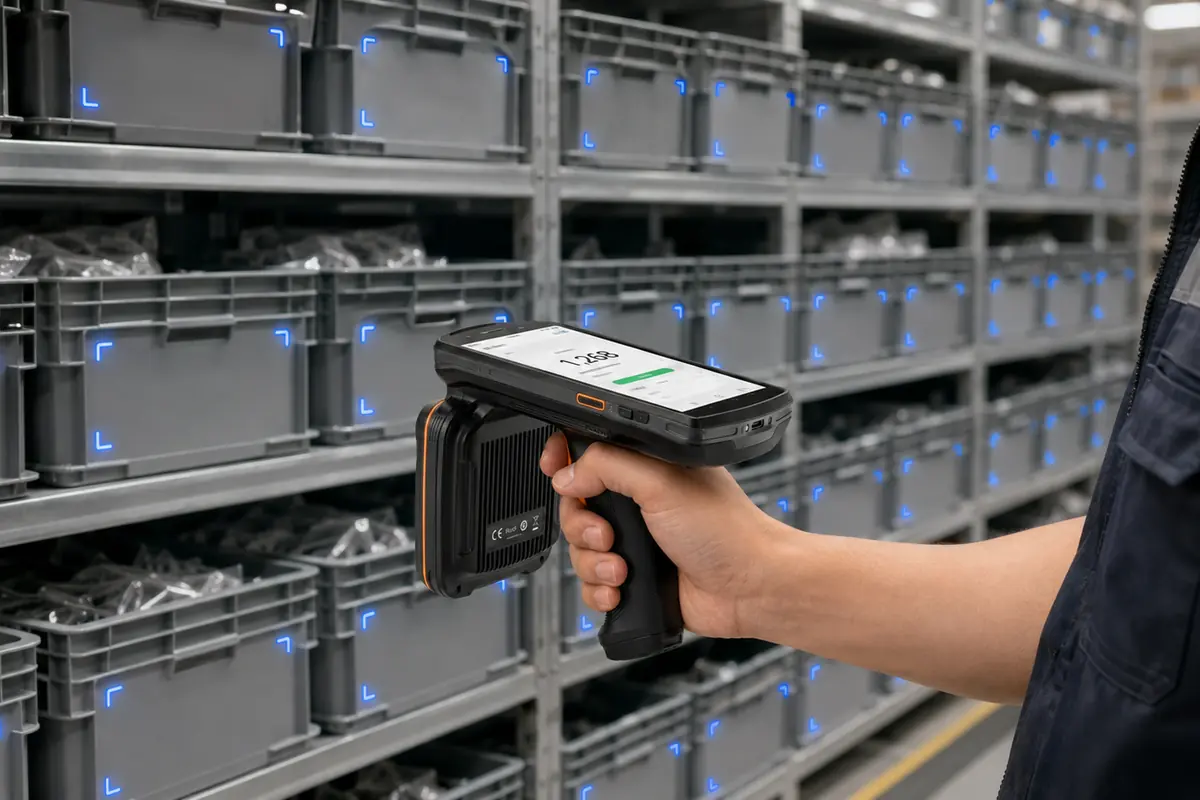

Count multiple tagged items in a single sweep
Capture multiple eligible UHF RFID tags while moving through shelves, storage areas, or asset zones—without aiming at every individual label.
Operators start inventory tasks, scan defined read zones, review captured records on-device, and focus follow-up on missing or unexpected items.
Read multiple eligible UHF RFID tags during one inventory pass.
Continue collecting tag data while moving through racks, cabinets, or asset areas.
Review captured tag records and investigate exceptions within the mobile workflow.
Before / After
Replace repeated item checks with one RFID inventory sweep
Item-by-item inventory
5 manual steps for every item
The same close-range sequence is repeated for each individual item.

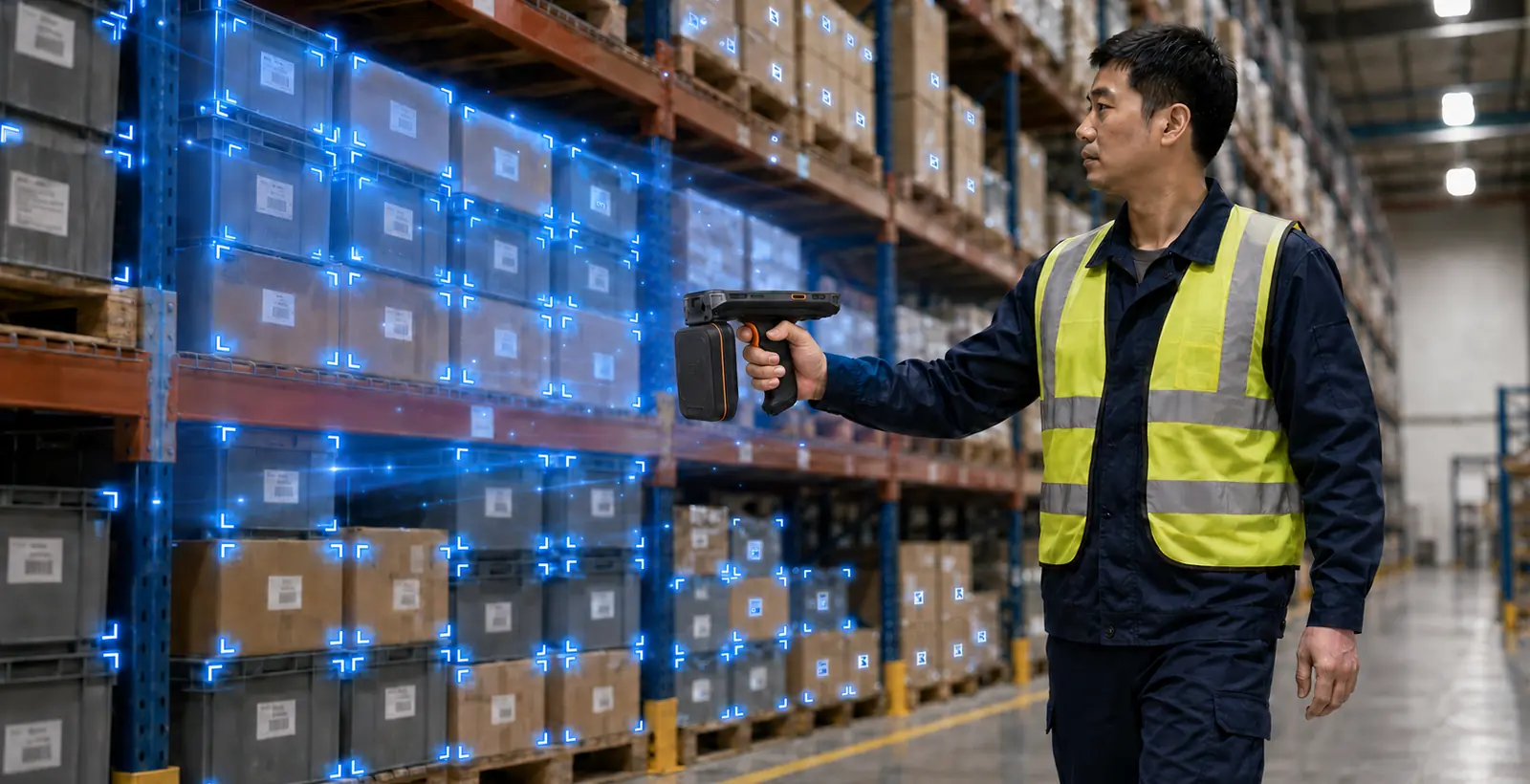

RFID batch inventory
3 steps for the entire read zone
RFID inventory performance depends on tag type, tagged object material, antenna orientation, RF configuration, nearby materials, interference, software settings, and operating conditions.
Long-Range RFID Reading
Read tags on high shelves and across wider work areas
Use the 5 dBi circularly polarized antenna and high-performance Impinj RFID engine to capture compatible tags from a practical working position.
For warehouse racks, asset rooms, production areas, and high storage locations, operators can direct the read zone toward the intended shelf or asset area and approach only the items that require further confirmation.
Conditional on tag, RF settings, orientation, material, and environment.
Designed to support practical mobile RFID data collection.
Supports high-performance UHF RFID reading for mobile workflows.
Features That Support Daily Work
Mobile computing, connectivity, and rugged operation
Use RFID together with barcode capture, Android applications, wireless synchronization, and a field-replaceable battery.
Professional 1D/2D barcode scanning
Capture common 1D and 2D codes alongside UHF RFID and 13 MP image data.
9000 mAh removable battery
Supports extended mobile use and can be fast charged in under three hours according to the supplied datasheet.
4G, dual-band Wi-Fi, Bluetooth 5.0, and GNSS
Synchronize field data through mobile, Wi-Fi, Bluetooth, and multi-constellation positioning options.

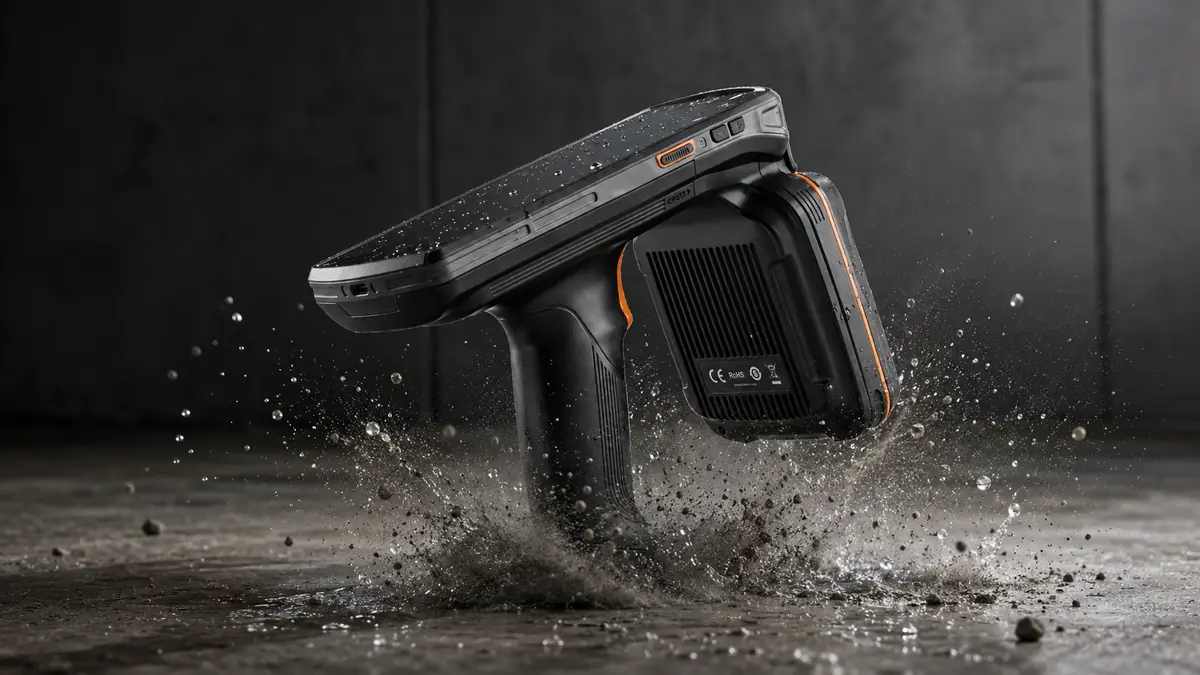

IP67 protection and 1.2 m drop resistance
Designed for dust, water exposure, and accidental drops during warehouse and field operation.
Applications
Built for inventory, stock counting, and asset visibility
Use RLRH-50 where mobile teams need to capture RFID tags, barcodes, images, and transaction data within the same workflow.

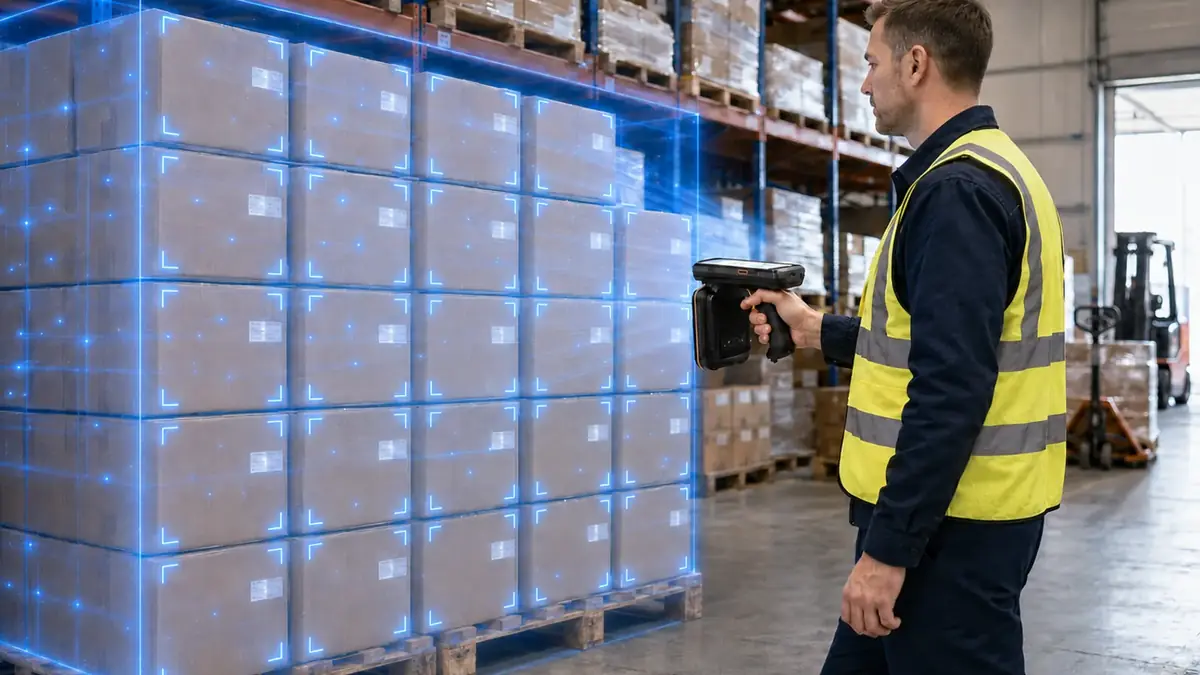

Warehouse Inventory
Warehouse Inventory
Support receiving, cycle counting, stock verification, and exception handling across shelves, pallets, and storage zones.

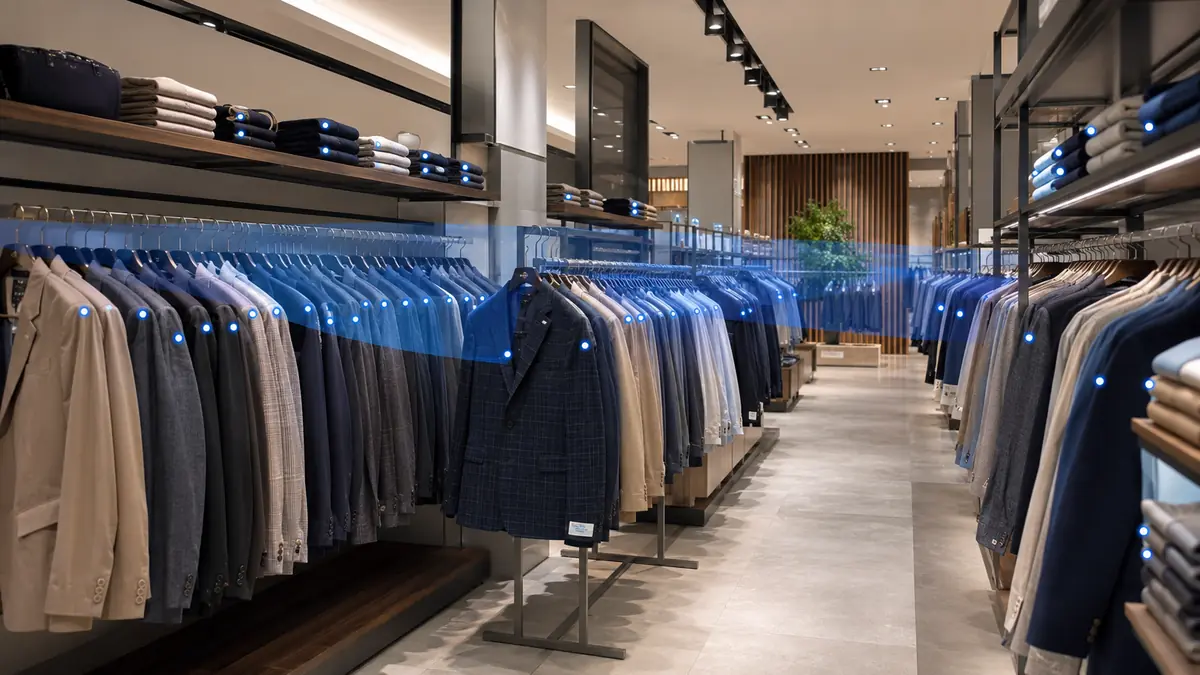

Retail Stock Counting
Retail Stock Counting
Count tagged merchandise on the sales floor or in back rooms and investigate stock differences in the mobile workflow.

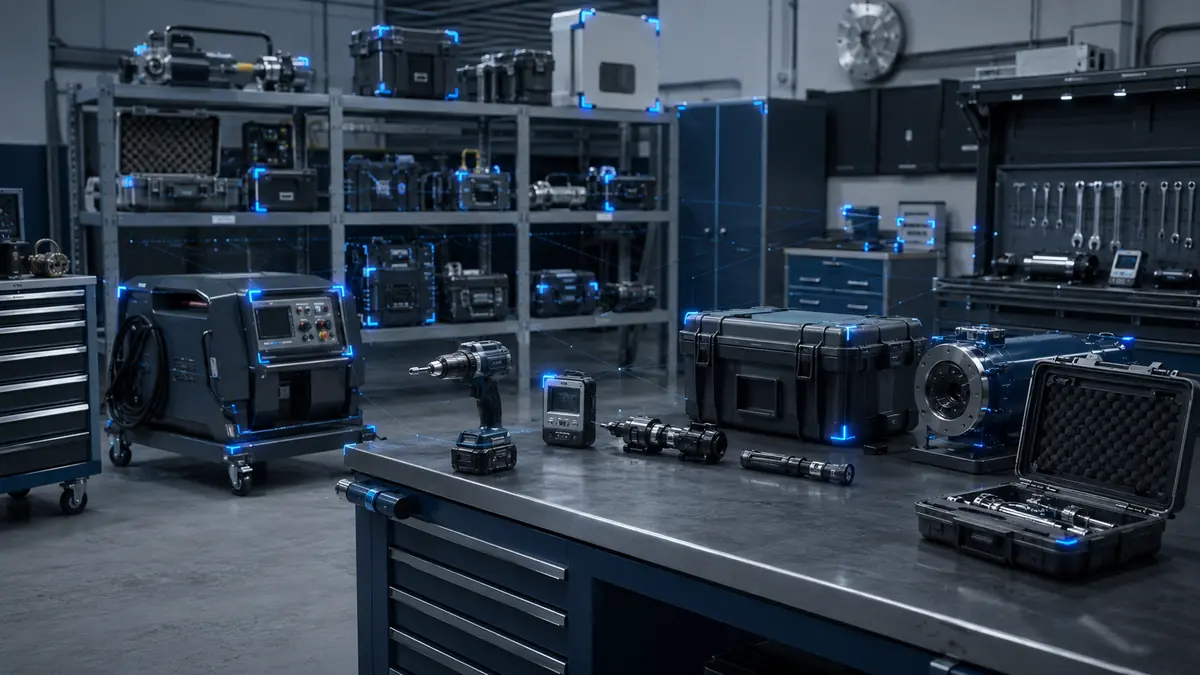

Asset & Equipment Tracking
Asset & Equipment Tracking
Identify tagged tools, equipment, reusable assets, and mobile inventory across plants, workshops, and field locations.
Specifications
RLRH-50 UHF handheld RFID reader specifications
Specifications below are transcribed from the supplied GH05 datasheet. Confirm the final RLRH-50 model mapping, regional configuration, accessories, and SDK package before publication or quotation.
| Mobile Computer | Operating System | Android 11.0, upgradeable to Android 13 |
|---|---|---|
| Processor | Octa-core 64-bit, 2.45 GHz | |
| Memory | 4 GB RAM + 64 GB ROM | |
| Expandable Storage | Micro SD, up to 256 GB | |
| Display | 5.7-inch HD, 720 × 1440 | |
| Touchscreen | Multi-touch, glove and water operation, passive stylus, Gorilla Glass | |
| Rear Camera | 13 MP autofocus with LED flashlight | |
| Front Camera | 5 MP fixed focus | |
| RFID & Capture | RFID Chipset | Impinj E710 / E510 |
| Frequency | 860–960 MHz; FCC 902–928 MHz; ETSI 865–868 MHz | |
| RF Protocol | ISO 18000-6C / EPC C1G2 | |
| Maximum Read Distance | Up to 20 m, depending on tag and environment | |
| Maximum Read Speed | Up to 1,000 tags/s, depending on environment | |
| Antenna | 5 dBi circularly polarized | |
| Barcode | Professional 1D/2D barcode scanner | |
| Power & Physical | Battery | 3.85 V, 9000 mAh removable lithium-ion |
| Fast Charging | Under 3 hours | |
| Dimensions | 143.3 × 169 × 90.5 mm | |
| Weight | 678 g | |
| Buttons | Volume +/−, power, 1 custom key, 2 scan buttons | |
| Connectivity | Wi-Fi | Dual-band 2.4 / 5 GHz, 802.11a/b/g/n/ac and fast roaming support |
| Mobile Network | Dual-SIM; 4G LTE / 3G / 2G regional band support | |
| Bluetooth | Bluetooth 5.0 with BLE | |
| Positioning | GPS, A-GPS, Beidou, GLONASS, Galileo | |
| Ports | USB Type-C with OTG; optional PSAM expansion | |
| Environment | Protection Rating | IP67 |
| Drop Resistance | 1.2 m to concrete | |
| Operating Temperature | −20°C to +60°C | |
| Storage Temperature | −40°C to +70°C | |
| Humidity | 5–95% RH, non-condensing |
Support & Documentation
Technical resources for evaluation and integration
Product Datasheet
Review mobile-computer, RFID, connectivity, ruggedness, and accessory specifications.
Request datasheet →SDK Package
Request SDK, APIs, sample resources, and project-matched technical documents by email.
Request SDK →Integration Support
Discuss RFID settings, application workflow, barcode requirements, accessories, and deployment conditions.
Ask an engineer →FAQ
Short answers about RLRH-50
What is the maximum RFID read distance?
The supplied datasheet states up to 20 m. Actual performance depends on the tag, tagged object, antenna orientation, RF configuration, interference, and environment.
How many RFID tags can the reader process per second?
The supplied datasheet states up to 1,000 tags per second under suitable test and operating conditions.
Does the device support barcode scanning?
Yes. The supplied configuration includes a professional 1D/2D barcode scanner and a 13 MP autofocus rear camera.
Which RFID tags does it support?
It supports UHF RFID tags compliant with ISO 18000-6C / EPC Class 1 Gen 2 within the configured regional frequency band.
Can the SDK be sent by email?
Yes. Submit your work email, company, application, required functions, and expected project volume so Raylink can send the relevant SDK package.
Is it suitable for outdoor or industrial work?
The supplied datasheet states IP67 protection, 1.2 m drop resistance, and an operating temperature of −20°C to +60°C. Validate the final configuration against the actual site conditions.
Project Review
Confirm the handheld reader configuration for your workflow
Share your tagged items, read-distance target, inventory process, barcode requirements, connectivity, accessories, operating region, and SDK needs.
