8-Port Embedded UHF RFID Reader Module

RLM-8P 8-Port UHF RFID Reader Module

Multi-antenna embedded RFID module for OEM reader hardware, smart cabinets, warehouse devices, and industrial automation. RLM-8P helps engineering teams extend antenna coverage while keeping the reader engine compact and controllable.

  • 8-port embedded RFID reader module with a compact 93.0mm x 80.2mm x 8.0mm footprint
  • 33dBm maximum RF output with 1dB stepping for controlled RF tuning
  • Supports ISO 18000-6C/6B and EPC C1G2 air interface requirements
  • SMA-K antenna connector and 15 PIN FPC connector for OEM integration
Request RLM-8P Quote Request RLM-8P Datasheet

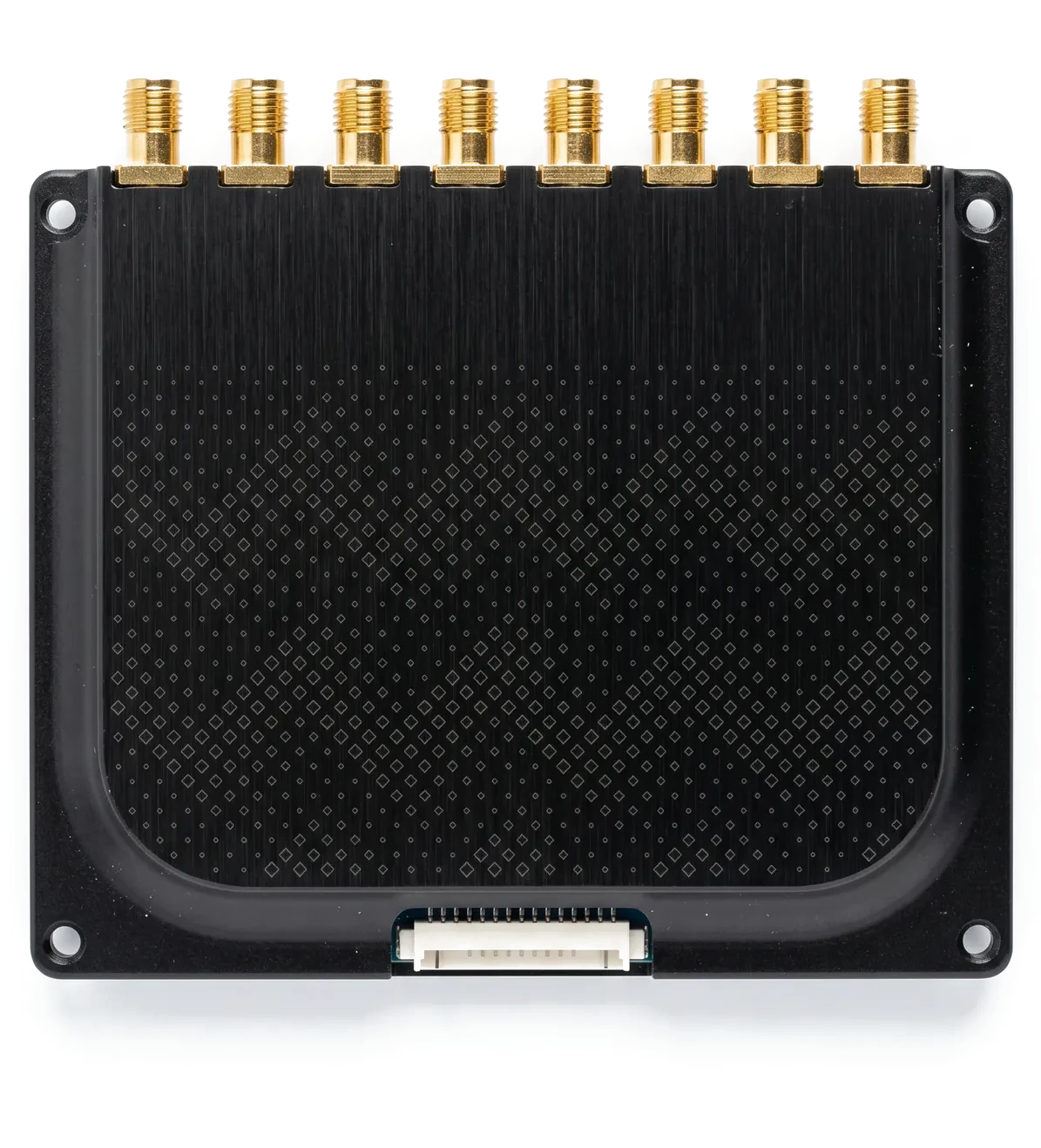

RLM-8P 8-port UHF RFID reader module for OEM embedded RFID hardware

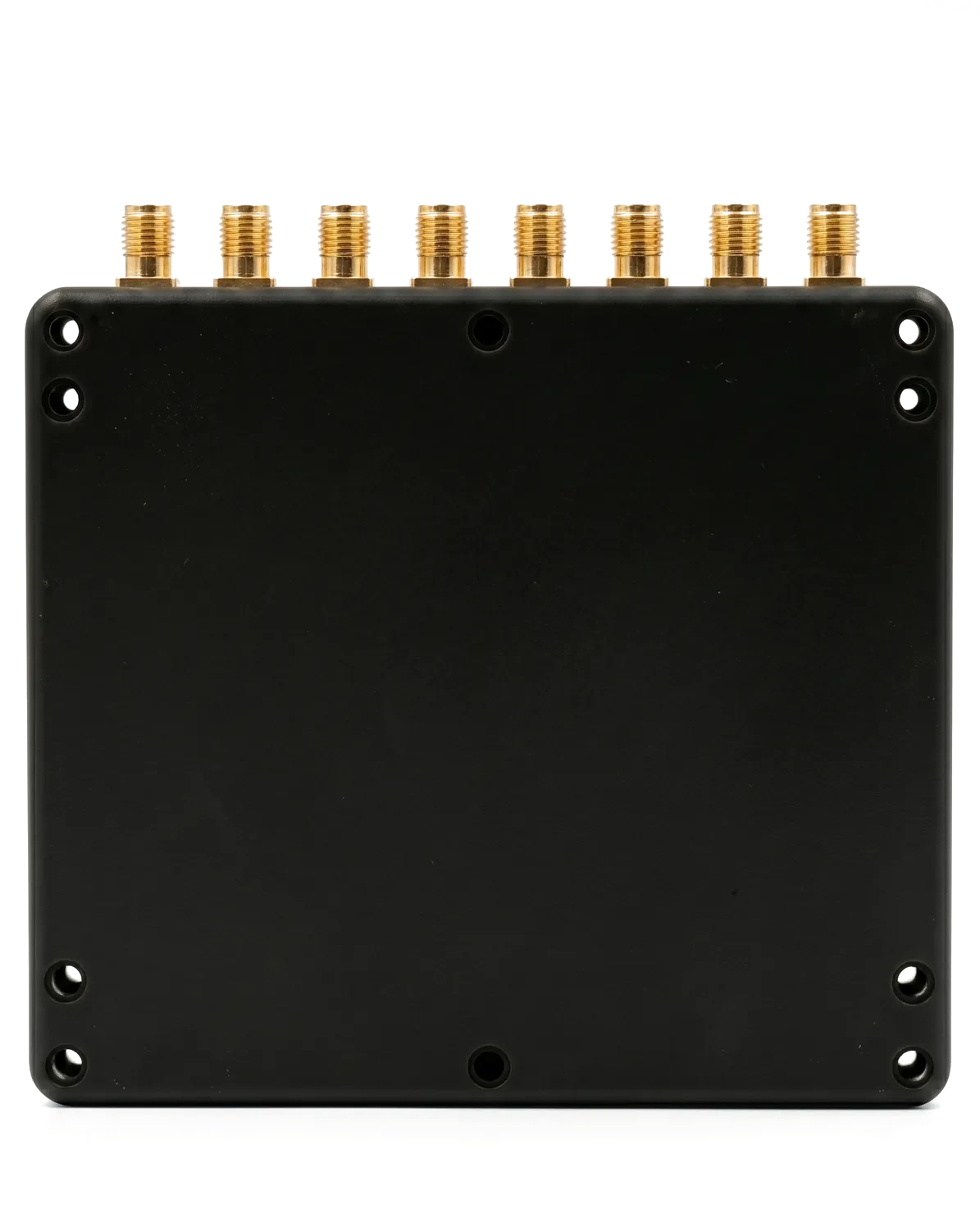

RLM-8P embedded RFID reader module hardware view

Technical Overview

How RLM-8P supports 8-port industrial RFID reader integration

RLM-8P gives OEM teams an 8-port embedded RFID reader platform for hardware projects that need several antenna channels in a compact board. It supports regional UHF frequency configurations, RF output adjustment, and host integration through a 15 PIN FPC connector.

The module is specified with 33dBm maximum RF output, -85dBm sensitivity, and inter-port isolation above 30dB. These parameters help engineers design stable multi-antenna read points for smart cabinets, small portal structures, and industrial RFID automation devices.

For continuous deployment, RLM-8P supports high-speed tag reading, RSSI data, tag data filtering, and operation across industrial temperature and humidity ranges. It is a practical choice when one-port modules cannot cover the required antenna layout.

  • OEM RFID reader hardware development
  • Smart cabinet and fixed reader integration
  • Warehouse automation and RFID asset tracking
  • Industrial RFID systems requiring multi-antenna coverage

Core Features

Engineering features for OEM RFID module integration

RLM-8P focuses on stable RF output, compact host integration, and practical multi-antenna deployment for industrial RFID hardware manufacturers.

Compact Module Design

RLM-8P uses a 93.0mm x 80.2mm x 8.0mm board format for embedded RFID reader hardware, smart cabinets, and OEM device integration.

Inter-Port Isolation

Specified >30dB (Inter-port) isolation helps multi-antenna reader layouts reduce channel interaction during deployment.

Regional UHF Frequency Support

Frequency configurations cover FCC, ETSI, and SRRC-MII UHF RFID deployment regions according to the supplied specification.

Adjustable RF Output

33dBm maximum RF output with 1dB stepping gives engineers practical control during RF tuning and antenna matching.

High-Speed Tag Reading

Read speed above 500 times per second supports warehouse automation, production line verification, and multi-tag RFID asset tracking.

SMA-K RF Port

SMA-K antenna connectors provide a familiar RF interface for industrial reader design and antenna cable routing.

15 PIN FPC Host Connector

The 15 PIN FPC connector supports compact host-board integration in OEM RFID reader products.

RSSI and Tag Filtering

RSSI data and tag data filtering help integrators improve application-level control in industrial RFID automation systems.

Application Scenarios

Where RLM-8P supports industrial RFID systems

Use this 8-port UHF RFID reader module when your product needs embedded reader control, antenna-zone planning, and manufacturer-level support.

Multi-Antenna Smart Cabinets

Use RLM-8P to cover shelves, bins, and tool positions in RFID smart cabinets with several antenna zones.

Compact RFID Portals

Build compact portal readers for material flow checks, inbound/outbound carton reading, and controlled warehouse passages.

Production Line Automation

Deploy multiple antennas around fixtures, conveyors, and workstations for industrial RFID automation and process verification.

Asset Tracking Stations

Create fixed RFID asset tracking stations where several antenna positions improve read-zone control.

Garment Sorting Systems

Support garment RFID tracking and batch reading with multiple antenna channels in sorting or packing stations.

OEM Reader Manufacturing

Use the 8-port module as the RF core for custom fixed RFID readers and OEM RFID hardware products.

Technical Specifications

RLM-8P specifications

The table below uses only supplied product specifications for engineering reference.

RLM-8P 8-port UHF RFID reader module technical specification table
ModelRLM-8P
Product Type8-port embedded UHF RFID reader module
Dimensions93.0mm x 80.2mm x 8.0mm
RF Air InterfaceISO 18000-6C/6B, EPC C1G2; GB/T 29768-2013 (Optional); GJB 7377.1-2011/7377.1-2018A
FeaturesTemperature and humidity protection support; DRM, simultaneous ID; tag data filter; RSSI
Operating FrequencyFCC (US) 902-928MHz; ETSI (EU) 865.6-867.6MHz; SRRC-MII (CN) 920-925MHz
RF Power Output33dBm±1dB maximum
Sensitivity-85dBm
Port Isolation>30dB (Inter-port)
Power Adjustment1dB stepping
ModulationDSB-ASK, PR-ASK
Continuous EPC Reading0-20M, depending on configuration
Continuous EPC Writing0-10M, depending on configuration
Read Speed>500 times/sec
Interface15 PIN FPC connector
RF PortSMA-K antenna connector
Operating Temperature-20°C ~ +70°C
Storage Temperature-40°C ~ +85°C
Humidity10-95% RH, non-condensing

SDK & Integration Support

Integration support for OEM RFID hardware manufacturers

Raylink RFID supports system integrators and OEM hardware teams with module selection, RF layout review, antenna matching discussion, and reader integration guidance. The goal is to help your engineering team move from module evaluation to a stable industrial RFID reader product.

For software and host integration, share your target interface, application workflow, and platform requirements. Raylink can confirm the supported development resources for your project before you commit to a hardware design.

  • OEM / ODM reader product cooperation
  • Firmware and hardware integration review
  • RF tuning and antenna deployment discussion
  • Support for RFID warehouse solution and industrial automation projects

FAQ

Questions about RLM-8P UHF RFID reader module

What is the RLM-8P UHF RFID reader module used for?

RLM-8P is used as an embedded UHF RFID reader engine for OEM RFID hardware, smart cabinets, fixed reader devices, warehouse automation, and industrial RFID asset tracking systems.

Does RLM-8P support OEM or ODM reader development?

Yes. Raylink RFID supports OEM and ODM manufacturing, firmware cooperation, hardware integration support, and engineering review for reader products based on customer project requirements.

Which UHF RFID air interface does RLM-8P support?

According to the supplied specification, RLM-8P supports ISO 18000-6C/6B, EPC C1G2, optional GB/T 29768-2013, and GJB 7377.1-2011/7377.1-2018A air interface requirements.

Can RLM-8P be used for industrial RFID automation?

Yes. RLM-8P is suitable for industrial RFID automation when the antenna layout, RF power, shielding, software workflow, and mechanical installation are engineered for the specific read zone.

How should I evaluate RLM-8P for my project?

Share your tag type, antenna plan, reading distance, enclosure design, host interface requirements, and target region. Raylink can review the integration conditions and suggest the appropriate module configuration.
